�ص㣺
• оƬ��װ������Ե��2500V������Ե
• ѹ�ӽṹ���������¶����Ժ���ѭ������
• ���С��������
����Ӧ�ã�
• ��ֱ���������
• ����������Դ
• ��ҵ���ȿ���
• ����
• ���㿪��
• �������
• ��ֹ������
• �纸��
• ��Ƶ��
• UPS��Դ
• ��س�ŵ�
| ���� | ���� | ��ֵ |
| Characteristic | Symbols | Value |

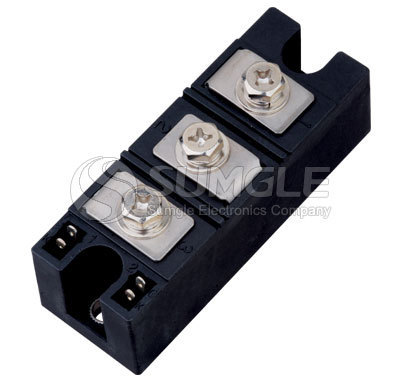

| MTC160 | ||
| ̬ͨƽ������ | Mean on-state current | IT(AV) | 160A@125°C |
| ̬ͨ������Чֵ | RMS on-state current | IT(RMS) | 251A |
| ��̬�ظ���ֵ��ѹ | Repetitive peak off-state voltage | VRRM | 600-1800V |
| ��̬�ظ���ֵ���� | Repetitive peak current | IRRM | 20mA |
| һ�ܲ�̬ͨ���ظ���ӿ���� | Surge on-state current | ITSM | 5.40KA |
| ��ӿ����ƽ��ʱ��� | I2t for Fusing for One Cycle, 8.3 milliseconds | I2t | 146000 A2s |
| �ż���ѹ | Threshold voltage | VTO | 0.80V |
| б�ʵ��� | Slope resistance | rT | 1.69mΩ |
| �����ֵ��ѹ | Forward peak voltage | VTM | 1.70V@480A |
| ��̬��ѹ�ٽ������� | Critical rise rate of off state voltage | dv/dt | 800V/μs |
| ̬ͨ��ѹ�ٽ������� | Critical rise rate of state voltage | di/dt | 100A/μs |
| ά�ֵ��� | Maintain current | lGT | 20-150mA |
| �ż��������� | Gate trigger current | VGT | 1.0-2.5V |
| �ż�������ѹ | Gate trigger voltage | lH | 30-180mA |
| �ż���������ѹ | Gate non trigger voltage | VGD | 0.2V |
| ���迹(������) | Thermal resistance junction to case | Rth(j-c) | 0.17°C /W |
| ���迹(����ɢ����) | Thermal resistance case to heatsink | Rth(c-h) | 0.08°C /W |
��Ե��ѹ | Rms Isolation Voltage From Case To Lead | VISO | 2500V |
| ��װŤ��(M5) | Installation torque (M5) | Fm | 3.0Nm |
| ��װŤ��(M6) | Installation torque (M6) | Fm | 3.0Nm |
| �洢�¶� | Storage temperature range | TSTG | -40 to 125 °C |
| ���� | Weight (typical) | Wt | 320g |
| ��·�ṹ | Circuit Diagram�� | |
| ���ͳߴ�(��λ:mm) | Outline Drawing(all dimensions are in millimeters): | |
